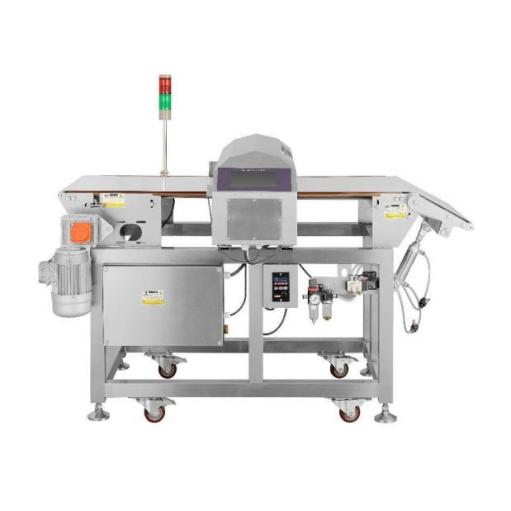

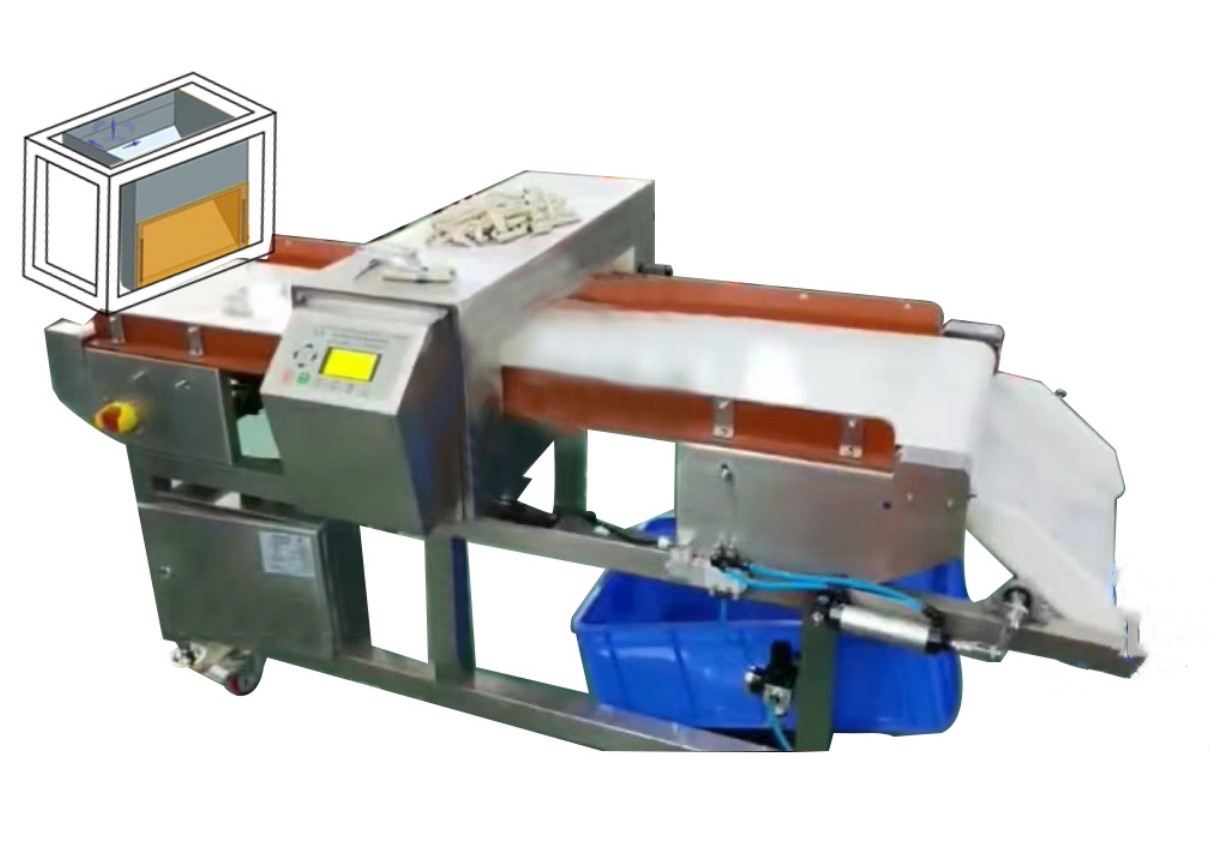

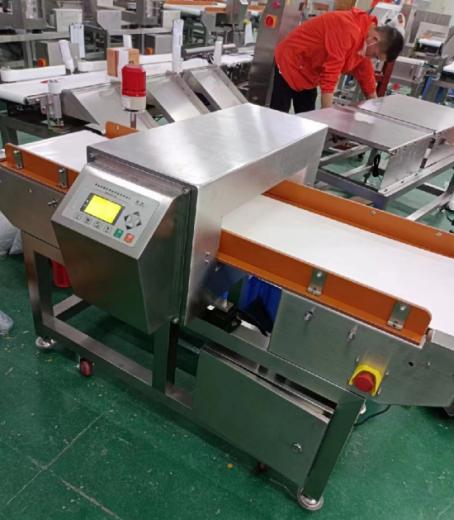

Metal detection machine

Product application:Widely applied in fields such as agricultural and sideline product processing, food processing, agriculture food processing, textiles, and plastics. Such as Herbs, spices,seeds,petal, dried fruits,rice, tea, miscellaneous grains, and industrial materials (plastics, glass, mineral

CONTACT

PRODUCTS DETAIL

Product application:

Widely applied in fields such as agricultural and sideline product processing, food processing, agriculture food processing, textiles, and plastics. Such as Herbs, spices,seeds,petal, dried fruits,rice, tea, miscellaneous grains, and industrial materials (plastics, glass, minerals, etc). Detection and removal of metal impurities in industrial products.


Technical parameter:

Model

FL-806

FL-808

FL-809

FL-810

FL-810K

FL-300K

FL-310

Scanning width

300-450mm

100-500mm

100-500mm

100-500mm

500mm

1000mm

500mm

Scanning height

100-200mm

120mm

120mm

120mm

50-200mm

50-100mm

120mm

Detecting speed

24-30M/min

25-30M/min

25-30M/min

24-32M/min

10-50M/min

10-50M/min

- - -

Detecting sensitivity

φ0.8-1.2mm

φ0.8-2.5

φ0.8-2.5

Φ1.0-3.0

φ0.5-4.0

Φ6.0

φ0.8-2.5

Dimension

1600*840*1005mm

1600*840*1005mm

1600*840*1005mm

1520*860*930mm

1600*840*1005mm

- - -

1600*840*1005mm

Power

120W

120W

120W

140W

140W

180W

120W

Voltage

220/380V, 50/60Hz

Weight

180kg

250kg

250kg

200kg

280kg

250kg

250kg

Main Material

SS304

SS304

SS304

SS304

SS304

SS304

SS304

Alarm method

Sound and light alarm, and automatic shutdown

Can be customized according to customer requirements



Product features:

1. The core part is carefully developed using leading digital technology and original imported chips. The detection coil is formed in one go through encapsulation, with high detection accuracy, stable performance, and strong resistance to external interference.

2. It can be made with multiple frequencies according to the characteristics of the product, and has the function of storing product testing data. It can store more than 10 types of product testing data and has a wide range of applications.

3. Adopting intelligent recognition technology with self-learning and memory functions, capable of automatically recognizing and memorizing product characteristics, effectively eliminating interference caused by various "product effects".

4. A simple and friendly operating interface, using a conversational LCD display screen, which can quickly and conveniently set parameters through a simple keying interface; It can detect multiple products containing different product signals (characteristics), and a single setting can ensure extremely high detection accuracy without the need for readjustment or program settings.

5. Modular component replacement, convenient and fast maintenance.

7. Dust-proof and waterproof functions, resistant to vibration and noise absorption, and able to adapt to harsh working environments.

8. Various removal devices (such as flippers, air blowers, push rods, etc.) and lightweight, large packaging specific, and load-bearing body designs can be adopted according to user needs.
